Zhuhai Jingding Technology Co.,LTD
Fabricante especializado en soluciones integrales de energía de almacenamiento con I+D y producción
Battery capacity 288wh|Lifecycles 2000 times+
300W AC Pure Sine Wave Inverter (Peak power 500w)
3 Ways to Recharge (100W Max. solar input | cigarette Lighter charging l AC Charging)

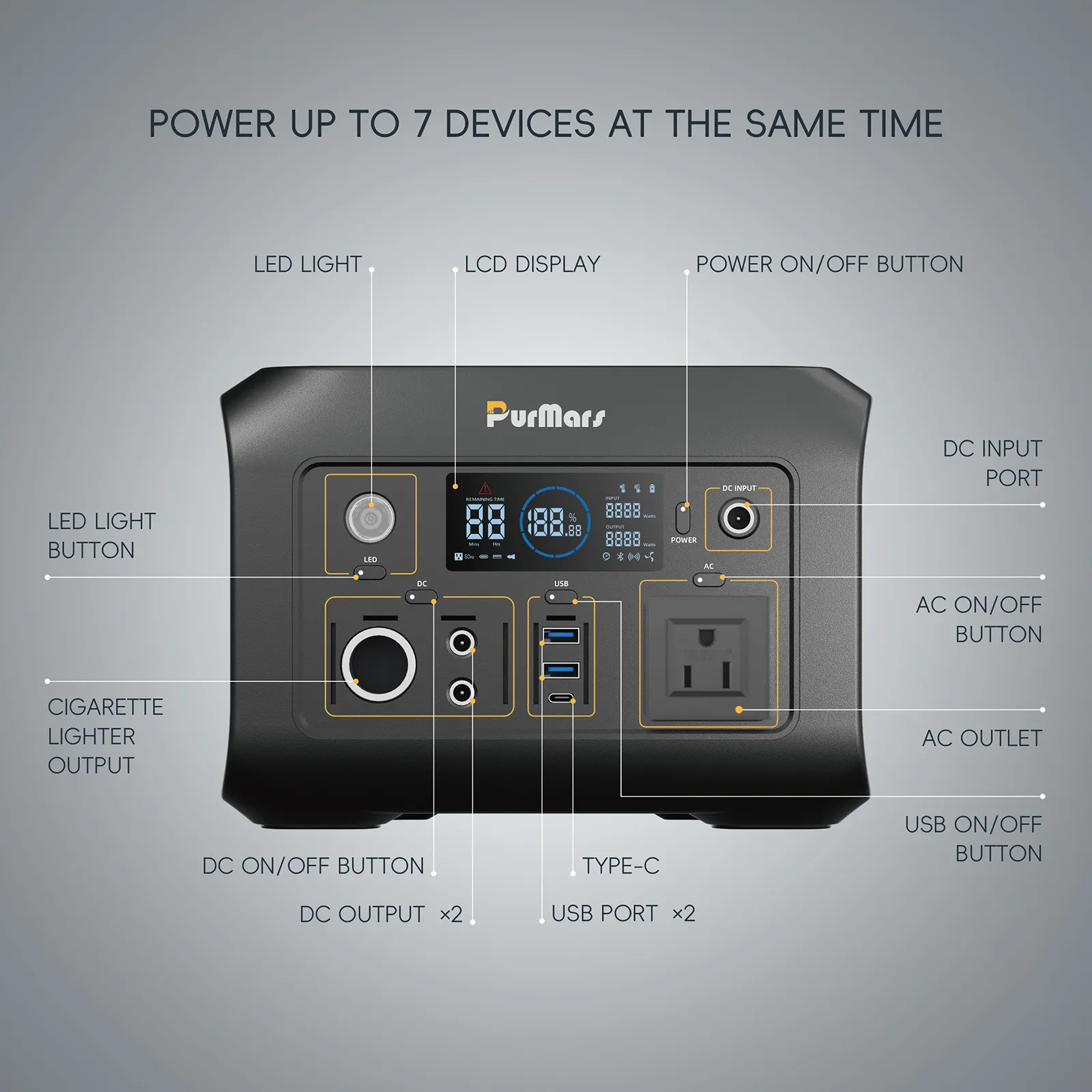

7 Outputs for Charging Multiple Devices at once

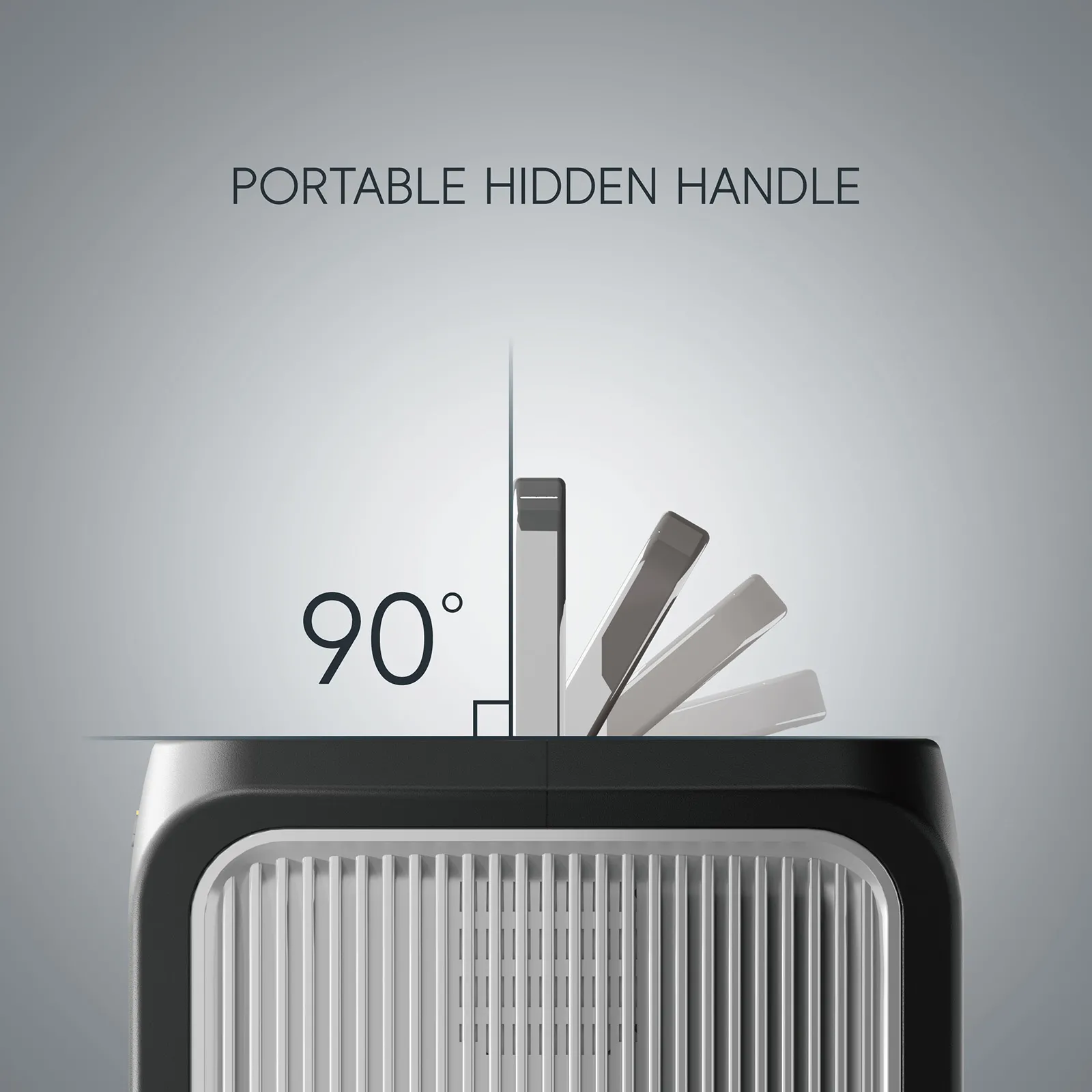

Easy to Carry | Fast Charging | safe & durability

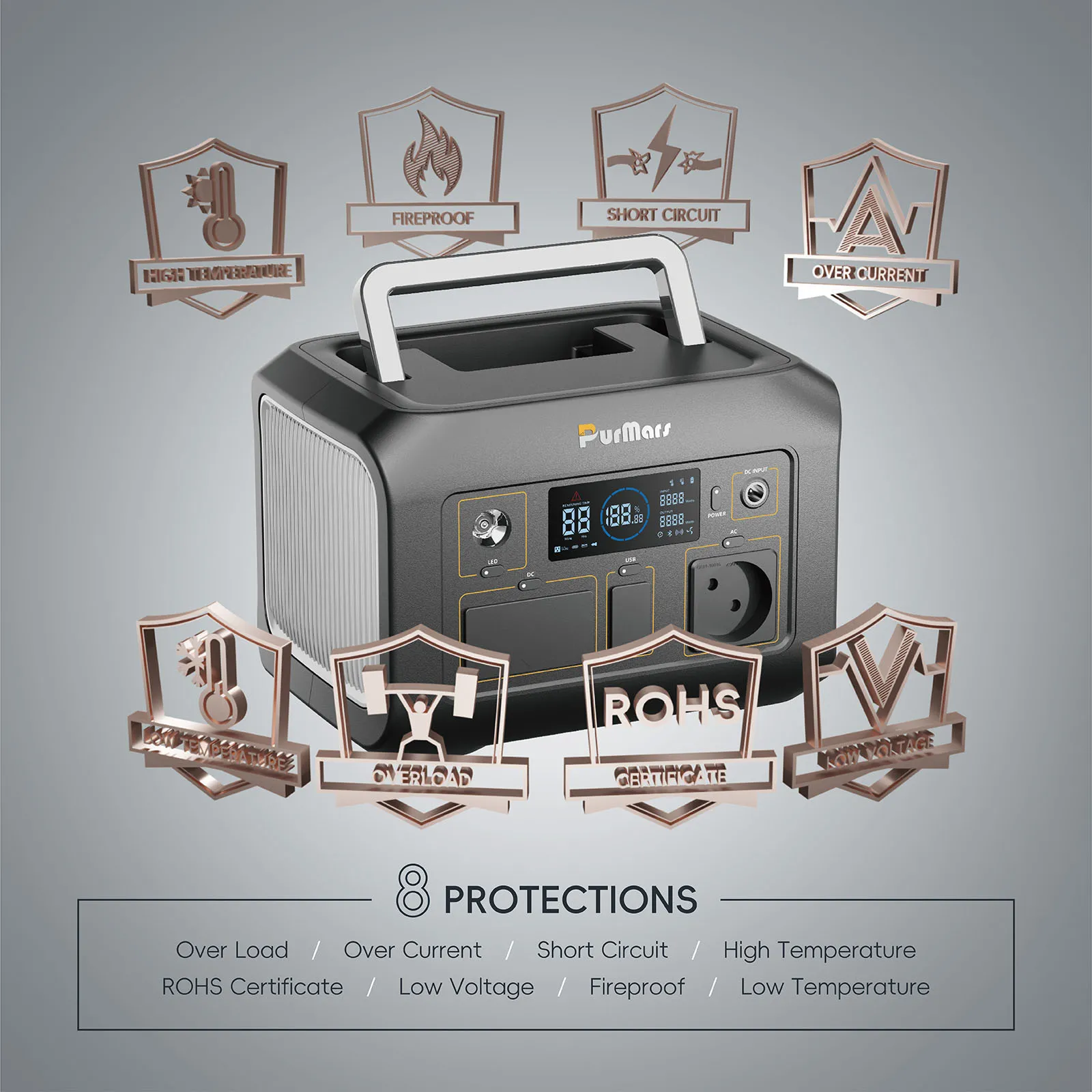

8 PROTECTIONS | Over Load / over Current / short Circuit High Temperature RoHs Certificate / Low Voltage / Fireproof / Low Temperature
Modelo de producto:

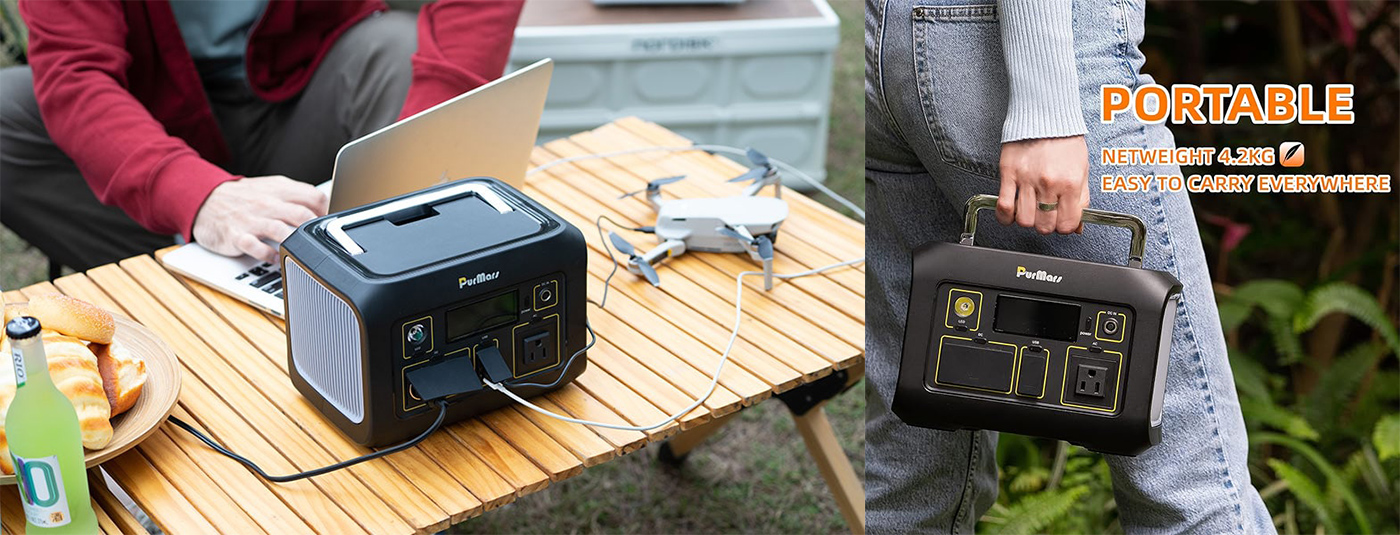

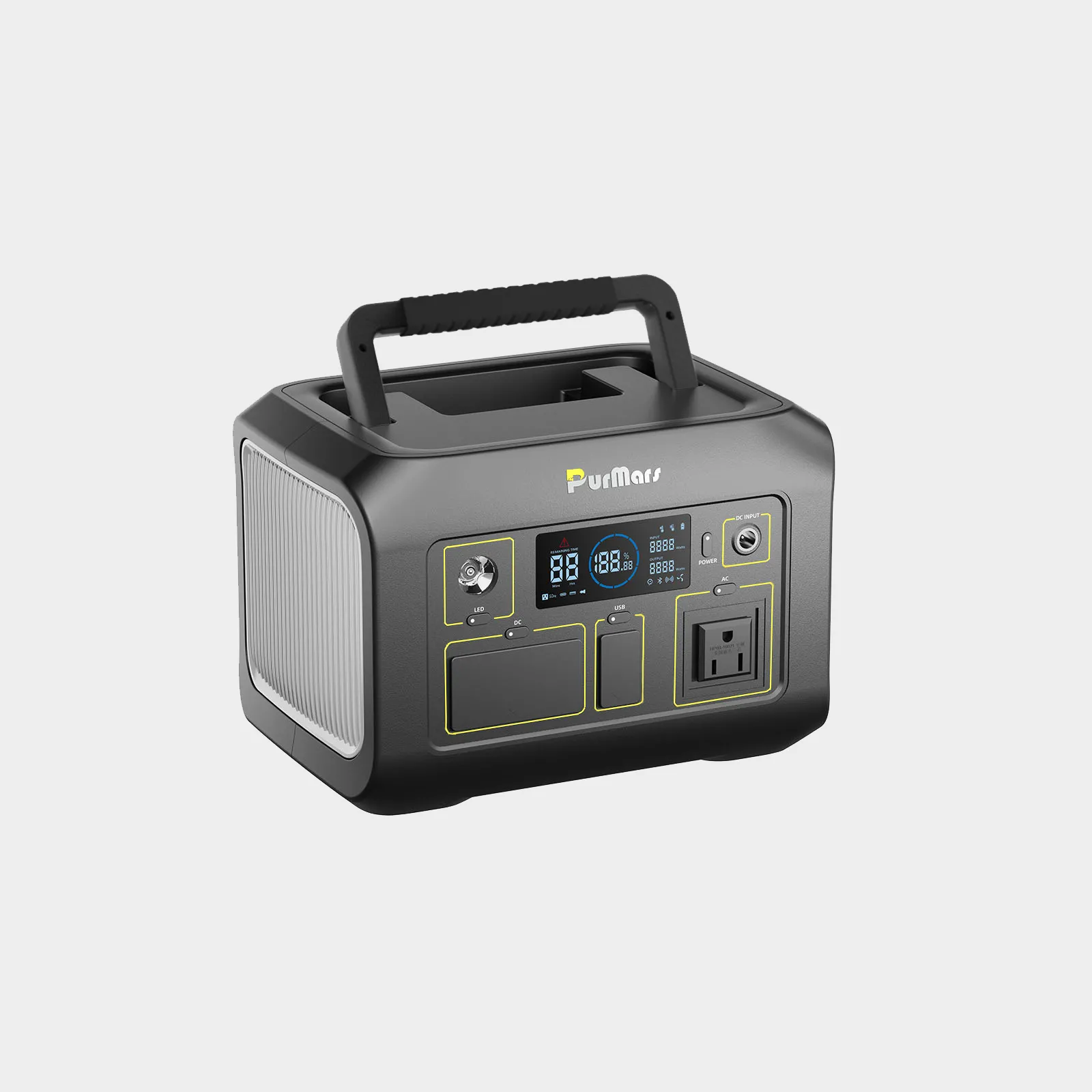

P300| Solar panel 100w, portable power station
1 año de garantía gratuita
Atención al cliente de por vida

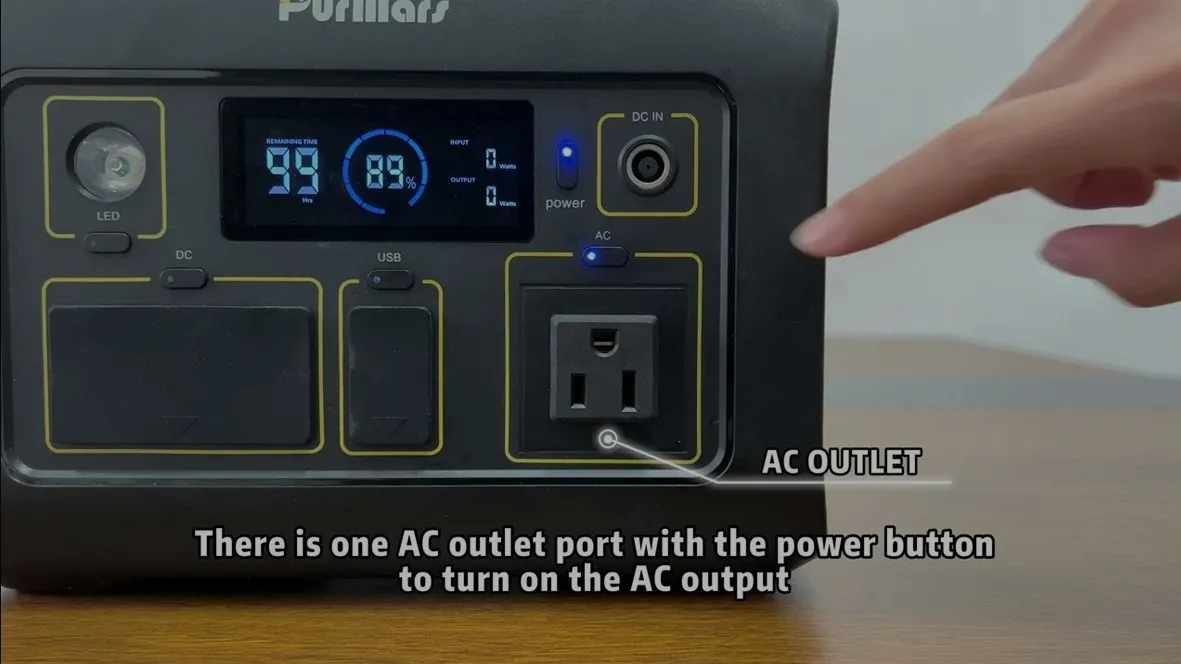

Método de uso del producto
Parámetros del producto
| CERTIFICATE | CE ROHS UL FCC UN38.3 MSDS PSE | |
| BATTERY PARAMETERS | Capacity | 16,18Ah(288Wh) |
| Cell type | LiFePO4 | |
| Lifecycles | 2000 times+ | |
| BMS Functions | High temperature protection, Low temperature protection, Over discharging protection, Over charging protection, Overload protection,Short circuit protection, Over current protection | |
| OUTPUT PARAMETERS | AC Output | 300W, Peak power 500W / the pure Sine Wave |
| USB A1/2 Output | QC3.0 18W(5V/3A,9V/2A,12V/1.5A) | |
| Cigarette Lighter Output | 12VDC 10A | |
| Nominal Output Voltage | A:100.0Vac-130.0Vac/E:210.0Vac-240.0Vac | |
| USB-C1 | PD60W(5V/3A,9V/3A,12V/3A,15V/3A,20V/3A) | |
| DC1/2 | 12VDC 8A(total max.96W) | |
| DC1/2+Car charger | DC 12V/10A,DC1/2+Car Charger Output:120W | |
| INPUT PARAMETERS | PV charging | 10-28Vdc 5A 100W (Max) |
| Cigarette Lighter charging | 12VDC 5A | |
| AC charging | 4A 96W(24V standard adapter) | |
| TEMPERATURE PARAMETERS | Usage environment temperature | -10℃~45℃ |
| Discharging environment temperature | -20℃~60℃ | |
| Charging environment temperature | 0℃~45℃ | |
| TRANSPORTATION PARAMETERS | Net Weight | 4.2KG |

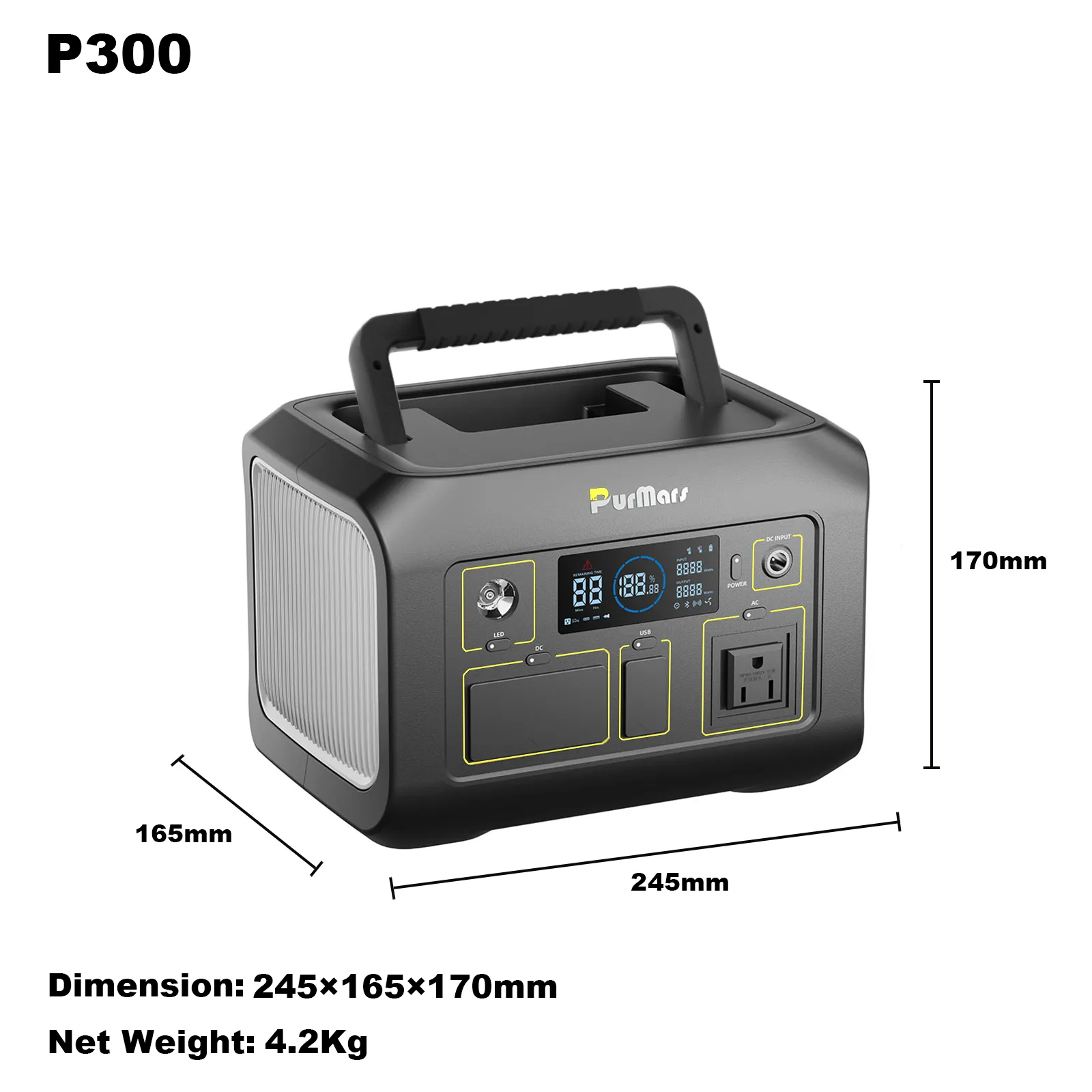

| Product Dimension | 245x165x170 (mm,LxWxH) | |
| Box Dimension | 320x240x295 (mm,LxWxH) | |
| U/VOL.(m*) | 0.023 | |
| Delivery Cycle (Days) | 45 | |
| 20GP(24-26m’) Loaded Weight 18t | 1043pcs-1130pcs | |
| 40GP (55m²) Loaded Weight 22t | 2391pcs | |
| 40HQ (68m") Loaded Weight 29t | 3001pcs | |
Diagrama de detalle del producto
Prueba de envejecimiento
Linea de ensamblaje
Comentarios de clientes
